Voltas 123 DZX 1 Ton 3 Star Split AC

Copper Condenser Coil: Better cooling and requires low maintenance Special Features: Anti-bacterial Filter;Dust Filter;Dehumidifier Refrigerant gas: R22
Brand:
Availability:

Available

ID:  TACV90040
MRP:     44,190.00
  • 1 Ton 3 Star Split Air Conditioner with Steady cool compressor.
  • Usually dispatched 6-9 Business days based on stock availability
  • 3 Star BEE Rating 2019 : For energy savings upto 25% (compared to Non-Inverter 2 Star)

Our Price:   26,999.00   You Save: 17,191.00

Quantity:

COD is not Available

Note

we highly recommend to use standard & authorized accessories Only. In case customer arranges accessories by his own, Brand Service Engineer might refuse &/or ask for labour charges for fixing these accessories.

Split Air-Conditioners

Covered under standard installation - Drilling on the wall to create a cavity/hole to facilitate routing of the pipes/tube from indoor unit (IDU) to outdoor unit (ODU) Installation of the copper and the drainage pipe, connecting indoor unit (IDU) to Outdoor (ODU) using standard wire/pipe length provided by manufacturer Connection of separately purchased stabilizer and electrical connections to the AC unit Cooling performance check and product demonstration Installation charges to be paid directly to brand engineer at the time of installation

.

Installation Details Standard installation of air-conditioners upto Rs.1000 covers only: 1) Drilling of holes into a brick wall for taking out the pipes 2) Fixing a hole sleeve & Cap. 3) Fixing & Connecting indoor and outdoor units using the standard Kit provided by the manufacturer 5) Wrapping the pipe with seasoning tape

.

Not covered as part of standard Installation charges are: 1) Outdoor unit stand - Rs. 750-1000. 2) Extra copper wire - Rs. 600-800 per metre (Two sized copper pipes will be used) 3) Drain pipe extension- Rs. 80- 110 per metre. 4) Wiring extension from the meter to the installation site - Rs. 90 per metre. 5) Vinyl tape roll -Rs. 80-110 6) Dismantling/shifting of the old AC's - Rs. 700-800 7) Closing the holes with White Cement - on Actuals 8) Stabilizer 9) Plumbing and masonry work 10) Power-point/MCB fitting and any other electrical work 11) Carpentry work. 12) Core cutting fabrication and electrical.

SKU: TACV90040 Category:

Highlights

. Copper Condenser Coil: Better cooling and requires low maintenance Special Features: Anti-bacterial Filter;Dust Filter;Dehumidifier Refrigerant gas: R22

Warranty

Period 1 Year on Product and 5 Years on Compressor Warranty of the Product is Limited to Manufacturing Defects Only

Technical Specification

In the Box 1 indoor Unit, 1 Outdoor Unit, Remote, Manual, Warranty Card, 1 Connecting Pipe, 1 Connecting Cable
. Brand- Voltas
. Installation Type- Split System
. Operation- LCD Remote
. LED Display-Yes
.

Performance Features

. Star Rating 3
. Air Flow Volume - Indoor [CMH] 800
. Noise Level - Indoor [..dB(A)] =46
. Rated ISEER [W/W] 3.55 Max operating Ambient Temp Range [Deg C] 50° C

Modes

. Auto Restart Yes Sleep Mode Yes
. Turbo Yes Swing Yes Lock Yes Timer Yes
. Glow Buttons Yes Dual Temp. Display Yes Cross Flow Yes

Filters

. Anti Dust-Yes, Self Diagnosis-Yes Anti Fungal-Yes
. Catechin Filter Yes
. Acaro Bacterium Yes Silver Ion Yes
. Evaporator Fin Blue Copper Tubes- Inner Grooved Yes Copper tubes Yes

Convenience Features

. Tonnage 1 Ton Rated Cooling Capacity [W] 3500
. Compressor Type High EER Rotary Refrigerant Gas R-32 Power Supply [V/Hz/Ph] 230 / 50 / 1 Phase
. Rated Power Input- Cooling [Watt] 985 Rated Current- Cooling [Amps] 4.4 Condenser Coil Copper
. Connecting Pipe [Type] Cu-Cu(12.5mm & 6.35mm) Connecting Pipe Length [Metre] 3.0 Connecting Cable [Metre] 3.0

Additional Features

Other Features Operation LCD Remote LED Display Yes

Power

Energy Rating Rated Cooling Capacity [W] 3500
. Compressor Type High EER Rotary
. Refrigerant Gas R-32
. Power Supply [V/Hz/Ph] 230 / 50 / 1 Phase
. Rated Power Input- Cooling [Watt] 985
. Rated Current- Cooling [Amps] 4.4 Condenser Coil Copper

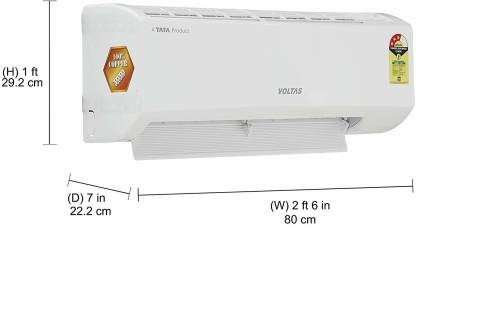

Indoor Dimensions

WxHxD [mm] 800x292x222
Net Weight [Kg] 9.3/12.0

Outdoor Dimensions

WxHxD [Kg] 28/32.5
Net Weight [mm] 835x555x295

Installation & Warranty

. The standard installation charges are Rs. 1000. Standard installation of air-conditioners covers only: 1) The installation will be done using only the items that are available inside the box. 2) Install the AC in the pre-cut grill or a wall-space. 3) Connection to a stabilizer or a power-point in the range of the power cord provided by the manufacturer. 4) A test run to check the AC's cooling performance. 5) A product demonstration.

Description

. Improved performance with this Voltas 1.0 Ton 3 Star 123 DZX Split AC that promises you pleasant days ahead and a pleasurable retreat from the heat. The air conditioner is extremely convenient to make sure that operation is never a problem. It features a sleek attractive design that will look perfect on your room wall. The Air Conditioner is one energy efficient air conditioner that you would not regret bringing home. The energy consumption is low and it can also operate at very low voltage.

.

7 Days Return Policy - Return is accepted by the seller within 7 days of delivery, only if goods are damaged. In case of wrong, missing or undelivered product, please highlight the issue within the 2 days of delivery.
